The Atlas BP8000 is a base-plate two-post lift designed for low ceiling garages. The total column height of 108" (9 feet) allows this lift to be installed in almost any professional or home garage with a ceiling as low as 9 feet 3 inches.
Benefits Of Our Atlas BP8000 2-Post 8000lb Capacity Carlift
The Atlas BP8000 incorporates an innovative standard manual single-point safety release, automatic arm restraints, powder coat finish, and heavy-duty chain mounted over dual reliable hydraulic cylinders (one cylinder in each column).
Chain-Over-Roller Cylinder Configuration: The Atlas BP8000 has the chain-over-roller cylinder configuration. The lift is designed to utilizes the two most popular hydraulic cylinder configurations used in two post electric/hydraulic above ground lifts; the direct drive cylinder configuration and the chain-over-roller cylinder configuration. The base plate two post above ground lift implements the chain-over-roller configuration. This is the only hydraulic cylinder system that is possible in the base plate lift.
The base plate two post above ground is designed for "low ceilings". The direct drive hydraulic cylinder configuration cannot be used in the base plate lift because the hydraulic cylinder would extend above the 9' column when the lift arms were raised to the maximum height. The "overhead" two post above ground lift may incorporate either the direct drive hydraulic cylinder or the chain-over-roller hydraulic cylinder. Super

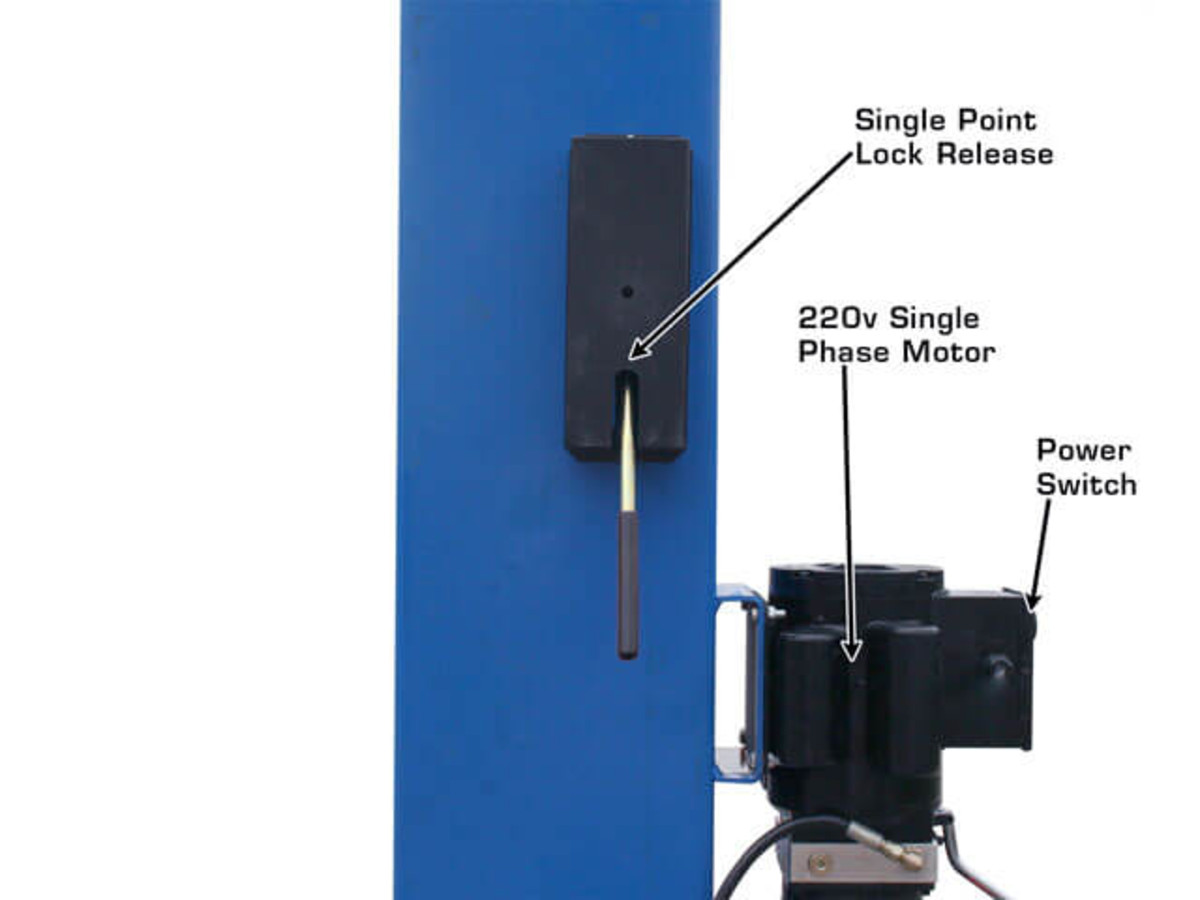

Single-Point Technology: The Atlas BP8000 features a revolutionary designed manual single-point safety release system for the BP8000 8,000lb. base-plate lift. The super single-point manual release allows the operator to unlock both column locks from the power unit column. Many manufacturers incorporate 24 volt electro-mechanical lock release systems that are complicated and unreliable. A manual single-point lock release system provides a mechanically proven system that will perform flawlessly for many years.
Double Lock System: The Atlas BP8000 introduces a revolutionary double lock system installed in both lift columns. This new lock system incorporates two locking mechanisms for added safety. The double lock system is automatically activated as the lift is raised. When the vehicle reaches the desired height, the lift is lowered into the next lowest locking position. When the vehicle is ready to be lowered to the ground, the double lock system is disengaged by pulling a handle located near the power unit. There is no need for the operator to go to both columns and manually unlock both column locks. All lifting and lowering operations are controlled from one column post. Double safety locks built into each column that can be unlocked by one release lever make the Atlas BP8000 base plate lift the safest and easiest to operate base plate lift in the Industry. Two locks...one release...no hassle...available only from ATLAS!
Electrical Requirement: The electric motor for the power unit requires 220 Volt (single phase) 60 Hz. We recommend using at least a 10 gauge (grounded) wire from the electrical panel. The power unit has a short pigtail (no plug) that can be wired to either a quick disconnect box (mounted on the lift column) or to a male/female plug combination. A 30 amp breaker is recommended.
|Lifting Time||Ask Your Salesperson|
|Overall Height||108" (9')|
|Overall Width||132" (11')|

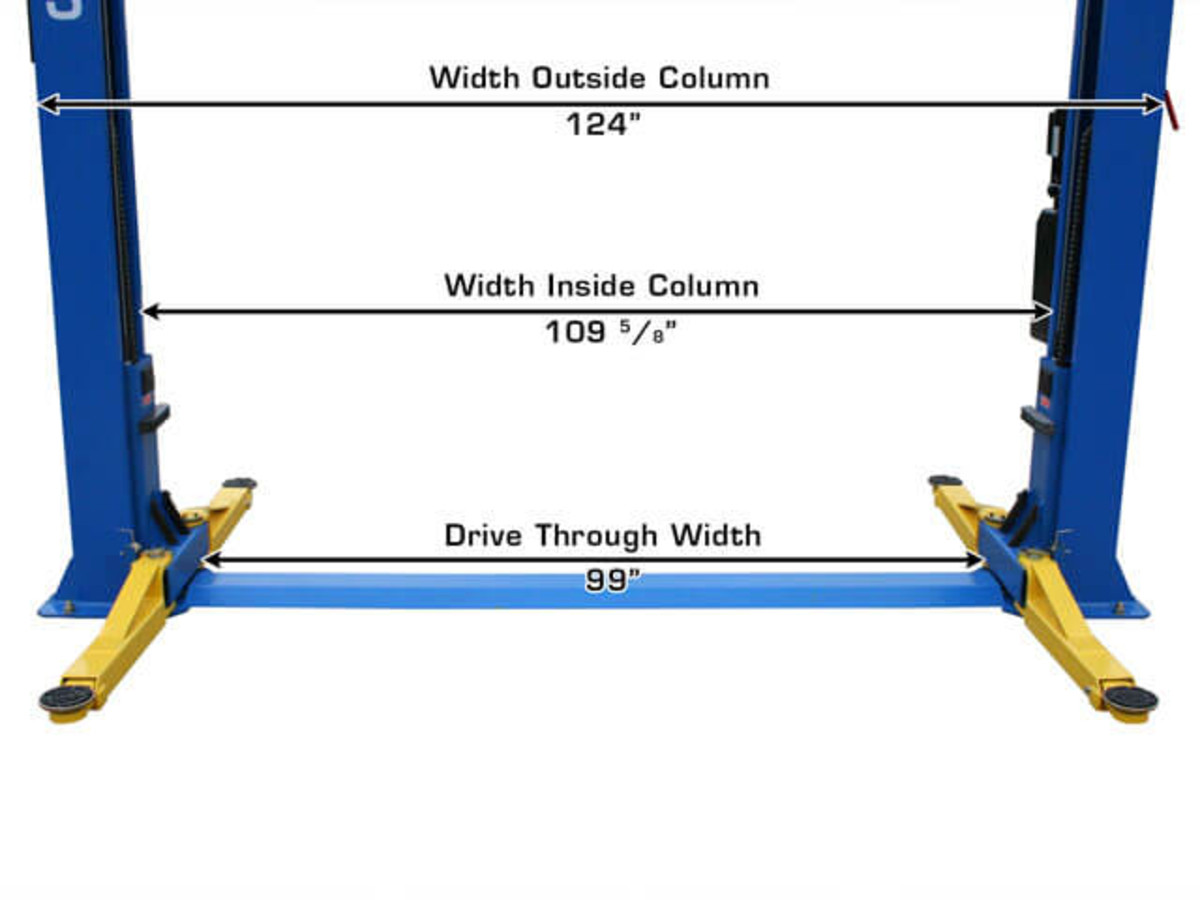

|Outside Column to Outside Column||124" (10' 4")|
|Maximum Lift Height (Without Adapters)||70 1/2" (5' 10 1/2")|
|Maximum Lift Height (With Adapters)||81 1/8" (6' 9 1/8")|
|Minimum Arm Height||3 1/2"|
|Base Plate Width||11 1/2"|
|Inside Column||109 5/8" (9' 1 5/8")|
|Drive Thru||99" (8' 3")|
|Column Size||7 1/4" x 11"|
|Column Thickness of Steel||6mm|
|Arms Thickness of Steel||6mm|
|Carriage Thickness of Steel||6mm|
|Base Of Lift||(17 1/2" x 17 3/4")|
|Motor/Electrical Requirement||3 HP 220V +/- 5% (209-231volts) single (1) phase.
A 30 amp breaker is required.
|Oil Requirement||3-5 Gallons AW32/AW46|

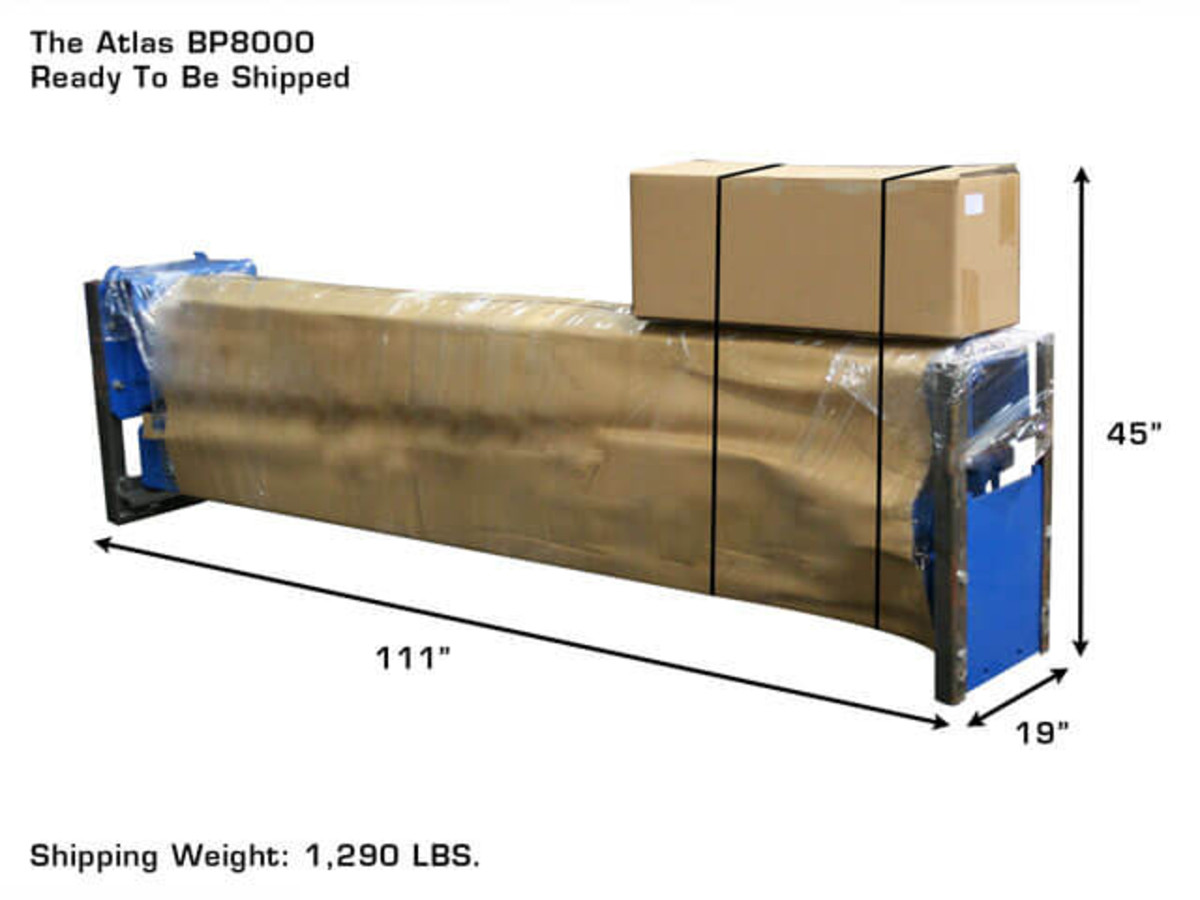

|Shipping Weight||1,290 LB.|
|**NOTE: Specifications are subject to change without notice.|
|Requires a minimum of 4" of concrete with 3000 psi.|
WarrantyAtlas Automotive Equipment of CANADA and some ALI certified Two Post and Four Post Vehicle Lifts weight capacity models 8,000 lbs. through 12,000 lbs. are warranted for (5) years on structural components and (1) year on hydraulic power units and cylinders from invoice date. NOTE: ALL WARRANTY CLAIMS MUST BE PRE-APPROVED BY THE MANUFACTURER TO BE VALID. Complete Warranty and Legal Terms All Atlas Automotive Equipment of CANADA products are warranted to the original owner only. Atlas Automotive Equipment of CANADA two and four post lifts are warranted for 5 years from invoice date on structural components (columns, arms, runways, and carriages) to be free of defects in material and workmanship. Non-structure items (cylinder, power unit and parts) are warranted for 1 year from invoice date. All other lifts and accessories are warranted for 1 year from invoice date on structural components, hydraulic power units, and cylinders. Atlas Automotive Equipment of CANADA shall replace those parts returned to the factory which prove upon inspection by Atlas Automotive Equipment of CANADA to be defective. Atlas Automotive Equipment of CANADA shall not pay for costs of ground transportation of said parts and/or no labor for replacement of said parts. Registration of the lift is required to receive the warranty coverage. This warranty shall not apply unless the product is installed, operated, used and maintained in accordance with Atlas Automotive Equipment of CANADA’s specifications set forth in the installation, operation and maintenance instructions. The remedies described are exclusive and in no event shall Atlas Automotive Equipment of CANADA or any sales agent be liable for any special, consequential or incidental damages of any kind including damages for breach of or delay in performance of the warranty. PLEASE NOTE: Registration of the vehicle lift is required to receive the warranty coverage. This warranty does not apply to the following: 1. Normal wear and tear items such as cables, sheaves, sliders, plastic and rubber components. 2. Normal maintenance and adjustments as required by the owner’s manual. 3. Failure to follow installation and operation instructions or user neglect or abuse. 4. Damage caused by corrosion of any kind. 5. Damage to components incurred during transportation or unloading. 6. Damage caused by improper lifting or overloading. 7. Any lift that has been altered from the original design or improperly repaired. 8. Cosmetic defects or blemishes that do not interfere with functionality of the lift.
Videos Hide Videos Show Videos
You May Also Like...
Product Assembly & Setup
Selling automotive equipment we have found that most of our customers are mechanically minded and look forward to settting up and assembling their new purchase. Most items we offer can be setup and assembled by two people within a reasonable time frame. Before tackling this project here are a few tips that we think will make your life a little bit easier:
- Review the manually fully before you begin setup. The manual should be included with your item but if you cannot locate it simply go to the product page on our website and download it for FREE. This manual has been put together and maintained over the years and will include all the tricks we have learned to make the assembly of your as seamless as possible
- Don't like reading or don't need the manual? That's fine, but maybe take a minute and check out the videos we have posted on each of the product pages. We understand that some people have the ability to problem solve on their own but why not get the inside information so you can spend less time having to problem solve?
- If you haven't already received your item, get an uderstanding of you will need to transport or unload it. Shop equipment like tire changers and wheel balancers are a dream to handle compared to car lifts. If you are assembling your car lift take time to plan our your install.
- Start by making sure the install location and area(s) surrounding it are clean and clear making it easy for you to move around and manipulate the pieces.
- Try to get the entire crate close to the install area without impeding it. There are some heavy pieces that need to be moved into place and the less you have to move them the better.
- Disassemble the packaging and pieces and have a look through them to ensure all pieces are there and get an idea of what each item is. You are going to need them at one point and if you have someone holding a heavy item while you search out a bolt or hose it is going to be a long day!
- If you are reading the manual, read 2-3 steps ahead of where you are at. We have heard time and time again how a customer has installed their lift to 90% only to find that a hose or cable needed to be put in place two steps earlier and now they have to essentially disassemble the lift only to put a small piece in place and then reassemble it.
- Be sure to review the electrical requirements of the product your are purchasing. Some items are supplied in either 110V or 220V. Others are manufactured so you can just plug it in while some have a "pig tail" which means you will need an electrician to either hard wire it to your panel or install a plug
- If you are assembling a car lift, you will need hydraulic fluid to make the lift work. PLEASE NOTE: we do not supply the hydraulic fluid for your lift. In general we recommend AW-32 hyraulic fluid for use in all of our car lifts (regardless of the type). A 5 gallon pale is typically more than enough and will usually leave you with a little extra
- When filling your hydraulic fluid for the first time don't rush the process. Fill the resevior to 1/3 or 1/2 and then run the lift up and down. Get the air and kinks out and then, when the lift is in the lowest position, fill it to 2/3 or 3/4 and run the lift up and down again. DO NOT fill the resevoir past 1/3 or 1/2 when the lift is in the raised position as there is flud throughout the cyclinders and other components. We have heard many times that a customer has filled the resevoir full when the lift is in the raised position and the as soon as they begin lowering the lift the resevoir becomes overfilled and spills all over the shop. This is a huge mess to clean up.
- Some hydraulic cylinders may be "air locked" from manufacturing which will not allow the piston to extend when pulled by hand. This does not mean the cyclinder is damaged, it is simply a result of the manufacturing process. To overcome this, start by ensuring that your feeder hoses to the cylinder are not connected (this would close the system and will not let air in or out). Using a ratchet strap or similar item, slowly put tension on the piston end and gently apply pressure trying to extend the piston out of the cylinder. Resistance will build up in the first couple inches of extending and then the "air lock" should break. You might get a little pop and the ratchet strap will loosen suddenly (hence the reason to apply pressure slowly) and now you should be able to extend and retract the piston by hand with little effort.
These tips are friendly suggestions from us and the years of experience we have gained working with these products. Although they don't apply to every product, every time we hope that you will take them at face value while still reviewing the other information (such as manuals and videos) we provide in regards to assembling and setting up your product. Your safety and satisfaction are our paramount concerns. If there are any questions or concerns throughout the assembly or operation process of your product please do not hesitate to contact us.
