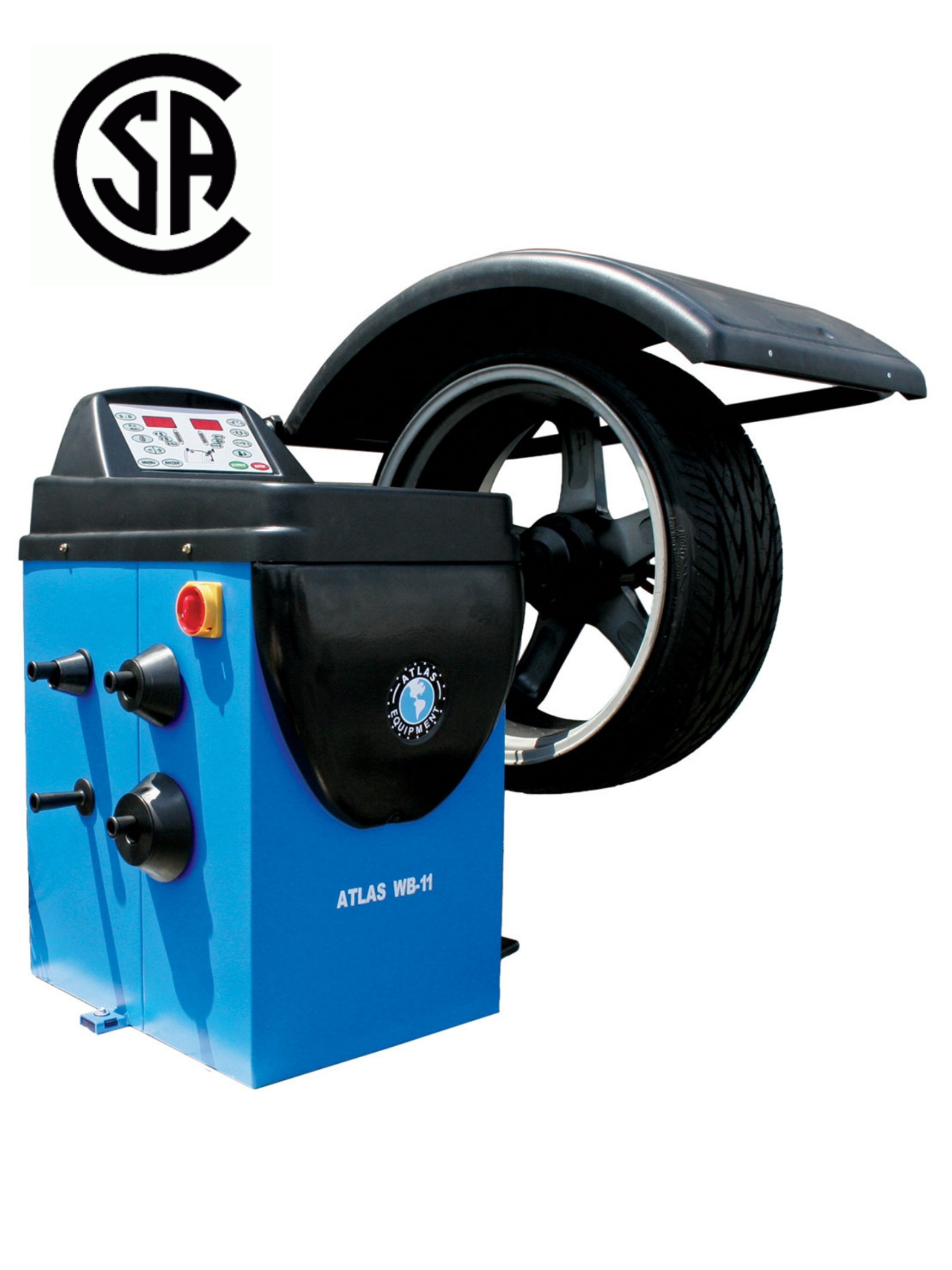

The Atlas WB-11 is probably the most popular of the Atlas wheel balancer collection that we have. It can be considered as one of the most sought-after models in the entire line of Atlas computer wheel balancers due to the fact that it is economical, dependable and very accurate. It is a simple, easy-to-use yet sophisticated wheel balancer. Replacing parts of the balancer was streamlined by its practical “plug and play” electrical components. It has the capability to self-diagnose problems and display the corresponding error codes, a very helpful function for the operator who can immediately make the required fix or adjustments. Definitely crossing out the need to hire expensive service technician to perform the necessary repair. Atlas WB-11 can carry wheels that weighs up to 130LB. It is the perfect choice for your shop; ease or repair and ease of use, what else could you ask for?
|Max Tire Diameter||39"|
|Rim Sizes (cars and light trucks)||10"-32"|
|Rim Width||1 ½"-20"|
|Max. Wheel Weight||150 LBS.|
|Balancing Speed||150 R.P.M|
|Automatic Data Entry||No|
|Truck Adapter Set||Optional|
|Warranty||1 year limited|
|Shipping Weight||355 Lbs.|
|Power Supply||110V 1Ph|
|Display||Standard or Metric|
|Weight Position Resolution||1.4 Degrees|
WarrantyNOTE: ALL WARRANTY CLAIMS MUST BE PRE-APPROVED BY THE MANUFACTURER TO BE VALID. Complete Warranty and Legal Terms Atlas Automotive Equipment of CANADA offers a one year limited structural parts warranty on all Atlas wheel balancers. Atlas Automotive Equipment of CANADA warrants the equipment to the original purchaser against defects in material or workmanship under normal use for a period of one year from the date of purchase. This limited warranty shall be limited to the repair or replacement of materials or parts found defective, at the discretion of Atlas Automotive Equipment of CANADA. Electrical component parts carry a 90 day warranty, motors carry a one year warranty. Our limited warranty policy (one year parts only) does not include a labor warranty. Our products are sold at such a competitive price that Atlas Automotive Equipment of CANADA cannot afford to send technicians into the field to repair the Atlas wheel balancers. We assume that the buyer of our wheel balancer is mechanically inclined or has employees that are mechanically inclined.Our wheel balancers are built with “plug and play” parts that make repairs very easy. This is the same philosophy that the Personal Computer Industry has used for many years.Our wheel balancers include a self-calibration feature that makes daily calibration obsolete. We offer a toll free number 1-800-400-5438 for service and parts information. This toll free number is directed to our Calgary, AB location. The service and parts department is open from 8 am to 5 pm MST from Monday to Friday.There are certain parts that are considered “wear items” as well as cosmetic defects or blemishes that do not interfere with functionality of the wheel balancer are NOT included in the one year warranty. Parts that have been subjected to abuse will NOT be considered for warranty. REPEAT: IF YOU ABUSE YOUR WHEEL BALANCER (LIKE PLUG A 110 VOLT CORD INTO A 220 VOLT OUTLET, USE YOUR WEIGHT HAMMER INSTEAD OF YOUR FINGERS TO ENTER PARAMETERS INTO THE KEYPAD, OR DRIVE YOUR CAR INTO THE SIDE OF THE BALANCER AND BEND THE SHAFT) THEN THE WARRANTY ON YOUR BALANCER IS VOID.
Videos Hide Videos Show Videos
How to Calibrate The Atlas WB11 Wheel Balancer
A walk through on how to calibrate your Atlas WB11 computer wh...
Atlas MC Kit
The Atlas MC adapter kit will allow your Atlas (passenger and ...
Atlas MC-XLT Kit
The Atlas MC-XLT adapter kit will allow your Atlas (passenger ...
Atlas Spoke Support Adapter (SSA)
Greg Smith Equipment offers the Atlas spoke support adapter (S...
The Atlas MC And MCXLT Balancer Motorcycle Kits Make It Easy To Balance Motorcycle Wheels
Atlas Universal Adapter For Wheel Balancers
Atlas Universal Adapter (UA) is designed for wheels that have ...
You May Also Like...
Product Assembly & Setup
Selling automotive equipment we have found that most of our customers are mechanically minded and look forward to settting up and assembling their new purchase. Most items we offer can be setup and assembled by two people within a reasonable time frame. Before tackling this project here are a few tips that we think will make your life a little bit easier:
- Review the manually fully before you begin setup. The manual should be included with your item but if you cannot locate it simply go to the product page on our website and download it for FREE. This manual has been put together and maintained over the years and will include all the tricks we have learned to make the assembly of your as seamless as possible
- Don't like reading or don't need the manual? That's fine, but maybe take a minute and check out the videos we have posted on each of the product pages. We understand that some people have the ability to problem solve on their own but why not get the inside information so you can spend less time having to problem solve?
- If you haven't already received your item, get an uderstanding of you will need to transport or unload it. Shop equipment like tire changers and wheel balancers are a dream to handle compared to car lifts. If you are assembling your car lift take time to plan our your install.
- Start by making sure the install location and area(s) surrounding it are clean and clear making it easy for you to move around and manipulate the pieces.
- Try to get the entire crate close to the install area without impeding it. There are some heavy pieces that need to be moved into place and the less you have to move them the better.
- Disassemble the packaging and pieces and have a look through them to ensure all pieces are there and get an idea of what each item is. You are going to need them at one point and if you have someone holding a heavy item while you search out a bolt or hose it is going to be a long day!
- If you are reading the manual, read 2-3 steps ahead of where you are at. We have heard time and time again how a customer has installed their lift to 90% only to find that a hose or cable needed to be put in place two steps earlier and now they have to essentially disassemble the lift only to put a small piece in place and then reassemble it.
- Be sure to review the electrical requirements of the product your are purchasing. Some items are supplied in either 110V or 220V. Others are manufactured so you can just plug it in while some have a "pig tail" which means you will need an electrician to either hard wire it to your panel or install a plug
- If you are assembling a car lift, you will need hydraulic fluid to make the lift work. PLEASE NOTE: we do not supply the hydraulic fluid for your lift. In general we recommend AW-32 hyraulic fluid for use in all of our car lifts (regardless of the type). A 5 gallon pale is typically more than enough and will usually leave you with a little extra
- When filling your hydraulic fluid for the first time don't rush the process. Fill the resevior to 1/3 or 1/2 and then run the lift up and down. Get the air and kinks out and then, when the lift is in the lowest position, fill it to 2/3 or 3/4 and run the lift up and down again. DO NOT fill the resevoir past 1/3 or 1/2 when the lift is in the raised position as there is flud throughout the cyclinders and other components. We have heard many times that a customer has filled the resevoir full when the lift is in the raised position and the as soon as they begin lowering the lift the resevoir becomes overfilled and spills all over the shop. This is a huge mess to clean up.
- Some hydraulic cylinders may be "air locked" from manufacturing which will not allow the piston to extend when pulled by hand. This does not mean the cyclinder is damaged, it is simply a result of the manufacturing process. To overcome this, start by ensuring that your feeder hoses to the cylinder are not connected (this would close the system and will not let air in or out). Using a ratchet strap or similar item, slowly put tension on the piston end and gently apply pressure trying to extend the piston out of the cylinder. Resistance will build up in the first couple inches of extending and then the "air lock" should break. You might get a little pop and the ratchet strap will loosen suddenly (hence the reason to apply pressure slowly) and now you should be able to extend and retract the piston by hand with little effort.
These tips are friendly suggestions from us and the years of experience we have gained working with these products. Although they don't apply to every product, every time we hope that you will take them at face value while still reviewing the other information (such as manuals and videos) we provide in regards to assembling and setting up your product. Your safety and satisfaction are our paramount concerns. If there are any questions or concerns throughout the assembly or operation process of your product please do not hesitate to contact us.
